Choosing Hardtop Gazebo and BBQ Grill Gazebo for Patio and Garden — European Standard Outdoor Living Structures

I have been working in outdoor product manufacturing for 12 years — since I joined QIAHE in 2014 — and in that time I have helped over 80 European buyers select the right gazebo structure for their patio, garden, or commercial outdoor space. The two questions I hear most often from procurement managers and garden center buyers are: "Should I recommend a hardtop gazebo or a BBQ grill gazebo for my customers?" and "How do I know if the structure meets European wind and snow load standards?" In this article, I will walk through the structural differences, material choices, load-rating factors, and OEM customization options based on products I have personally overseen to clients in Germany, France, the UK, and the Netherlands.

Hardtop Gazebo vs. BBQ Grill Gazebo: Structural Purpose Defines Design

The first thing I clarify with every OEM buyer is that these two product categories serve fundamentally different functions, and a generic structure that tries to do both usually compromises on one. A hardtop gazebo is a year-round outdoor living shelter — family gatherings, dining, reading, socializing — with a solid roof that provides protection from rain, snow, and UV exposure. A BBQ grill gazebo is a cooking-dedicated shelter, designed around heat dispersion, smoke ventilation, and easy access to the grill.

At our factory in Yuyao, we produce both types with distinct design parameters:

• Hardtop gazebos feature a full aluminum or galvanized steel roof panel system with integrated drainage channels, mesh panels for insect protection, and optional side curtains. The roof slope is typically 15-20 degrees to shed rain and snow. The standard size is 3 m x 3 m (10 ft x 10 ft) for residential patios, with larger sizes up to 4 m x 6 m for commercial hospitality venues.

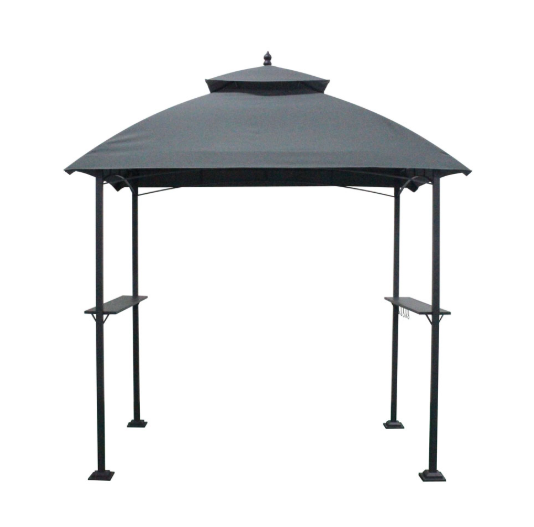

• BBQ grill gazebos have a smaller roof footprint — typically 2.5 m x 2.5 m to 3 m x 4 m — with at least 60% open side area for cross-ventilation. The roof includes a ventilation ridge or chimney opening to allow smoke and heat to escape. The frame near the cooking zone uses heat-resistant powder coating rated to 200°C continuous exposure.

I have seen a common mistake: a buyer orders a hardtop gazebo and places a charcoal grill underneath it. Within two seasons, the roof panels on the side nearest the grill develop heat distortion, the powder coating on the frame flakes off within 500 mm of the grill, and soot accumulates on the ceiling panels requiring aggressive chemical cleaning that damages the finish. The hardtop gazebo was structurally adequate — it was simply the wrong product for the cooking application.

European Load Standards: What Snow and Wind Ratings Mean

When a buyer from Sweden or Switzerland asks about snow load, I always say: if the structure is not designed to your local snow load zone per EN 1991-1-3 (Eurocode 1: Actions on Structures — Snow Loads), you are not buying a gazebo, you are buying a liability. The European map divides snow load zones from 0.5 kN/m² in southern Europe (approximately 50 kg/m² or 10 psf) up to 3.0 kN/m² in northern Scandinavia (approximately 300 kg/m² or 60 psf).

Our aluminum hardtop gazebos are designed with the following load ratings:

I personally verify every load calculation with our structural engineer before quoting a project for a specific European country. For a Dutch buyer who was sourcing 200 hardtop gazebos for garden centers across the Netherlands — a country with moderate snow but high wind exposure — we reinforced the roof-to-post connection brackets from 2 mm to 3 mm thick galvanized steel and added diagonal cross-bracing under the roof frame. The wind load resistance went from 90 km/h to 110 km/h without changing the visible design.

How Load Testing Works at Our Factory

I have been in our factory during wind load testing sessions. We mount a fully assembled gazebo frame onto a reinforced concrete base in our outdoor test area and apply incremental sandbag loading to simulate snow, distributed per EN 1991-1-3 guidelines. For wind simulation, we use a calibrated air blower array that produces a uniform pressure differential across the roof surface.

A recent test on our 3 m x 3 m aluminum hardtop gazebo: we loaded the roof with 1,200 kg of sandbags (equivalent to 130 kg/m²) and held the load for 24 hours. The maximum roof deflection measured 22 mm at the center of the panel. The frame showed no permanent deformation after unloading. We documented the results with photos and a test report that I provide to every custom OEM buyer as proof of compliance.

Aluminum vs. Steel Frame: Which One for Which European Market?

I have shipped gazebos to over 15 countries, and the frame material preference splits predictably by market:

• Germany, Austria, Switzerland: Strong preference for aluminum frames. The buyers I work with cite corrosion resistance as the deciding factor — winters with road salt spray and de-icing chemicals near patios accelerate steel corrosion. Our aluminum 6063-T5 frame with a powder-coated finish shows no corrosion after 5 years in outdoor exposure testing.
• France, Spain, Italy: Steel frames are more common, especially for BBQ grill gazebos where heat resistance matters. The cost advantage for steel is approximately 25-30% less than equivalent aluminum. Buyers in these warmer climates are less concerned about rust and more focused on heat performance near the grill.
• UK, Ireland: Aluminum has been gaining market share over the past 3 years. The higher humidity and frequent rain create conditions where steel frames, even powder-coated, show surface rust at connection points within 2-3 years. Our UK distributor switched entirely to aluminum hardtop gazebos in 2024 after customer returns for rust on steel models reached 5.8% within the warranty period.
• Scandinavia: Heavy-duty aluminum with reinforced wall thickness (2.0 mm minimum) is the standard. Snow loads in Oslo or Stockholm zip codes frequently exceed 150 kg/m², and the lighter weight of aluminum makes installation on rooftop terraces and wooden decks feasible without structural reinforcement.

I also want to address the powder-coating quality question, which I get from nearly every OEM buyer. We apply a two-coat powder system: a zinc-rich epoxy primer (80-100 µm) followed by a polyester topcoat (60-80 µm) in the RAL color specified by the client. The total coating thickness of 140-180 µm provides salt spray resistance for 500+ hours per ASTM B117. I have seen budget gazebos with single-coat polyester at 60 µm total thickness develop pin-hole rust within 18 months. The extra coating cost adds approximately $12-18 per unit but extends visible frame life by 3-5 years in coastal or humid environments.

Roof Panel Design: Double-Layer vs. Insulated Options for Year-Round Use

The roof is the most structurally demanding part of any hardtop gazebo. Over the years I have tested three roof configurations and here is what I have found:

Single-layer galvanized steel (0.5 mm) — This is the entry-level option. It sheds water and provides basic UV protection, but it transfers solar heat and rain noise directly to the space below. A customer in the south of France with a single-layer roof reported interior temperatures 12°C above ambient on a 35°C day. Acceptable for occasional-use budgets, but not for year-round outdoor living spaces in European climates.

Double-layer galvanized steel with air gap (0.6 mm + 0.6 mm, 15 mm gap) — Our standard configuration for residential hardtop gazebos. The air gap between layers reduces heat transfer by approximately 30% compared to single-layer and significantly dampens rain noise. Rain at 25 mm per hour produces 48 dB(A) below a double-layer roof vs. 62 dB(A) below single-layer — a noticeably quieter experience.

Insulated panel (aluminum + EPS core + steel backing) — Our premium option for northern European and commercial installations. The 20 mm thick EPS core provides thermal insulation (U-value ~1.2 W/m²K), reduces rain noise to 38 dB(A), and adds approximately 15% more rigidity than double-layer steel at equivalent weight. I have shipped insulated roof panels to a ski chalet project in the Austrian Alps where the gazebo serves as a heated hot tub enclosure during winter months.

OEM Customization: What We Can Do for European Buyers

At QIAHE, OEM customization is not an add-on service — it is how we do business. I have personally managed custom projects ranging from RAL color matching for a French garden furniture chain to full structural redesign for a German commercial outdoor dining contract.

Available customization options:

• Dimensions: Custom footprint sizes from 2.5 m x 2.5 m up to 5 m x 6 m. Standard post spacing is 2.5 m to 3 m; larger spans require reinforced beam sections.
• Frame color: Any RAL color, from classic RAL 7016 anthracite grey (our most popular European option) to custom-branded colors. Minimum batch: 50 frames per color.
• Roof panel color: Galvanized steel panels can be powder-coated in any RAL color or left in natural galvanized finish (silver-gray). Dark colors absorb more solar heat — for southern Europe I recommend RAL 9006 or 9010 light colors.
• Side panels: Full mesh (insect screen), half-mesh/half-curtain, full privacy curtain, or solid panel options available. Mesh is fiberglass-reinforced PVC with 1.2 mm × 1.2 mm opening size.
• Anchoring system: Ground stake (temporary), concrete bolt-down (permanent), or weighted base plate (no-dig). For European commercial installations, I always recommend concrete bolt-down with M12 expansion anchors.
• Branding: Logo embossing on post brackets, printed fabric curtains, embossed roof panels, and custom packaging with instruction manuals in your local language.

The lead time for a custom OEM hardtop gazebo order — from design approval to container loading — is typically 35-50 working days for the first order, and 25-35 working days for repeat orders. Our MOQ for OEM customizations is 50 units per model, though for special commercial projects we have accommodated MOQs as low as 20 units.

Installation Considerations for European Patio and Garden Structures

I have learned that even the best-designed gazebo fails if the installation instructions are not adapted to local practices. I have included European-specific considerations in our assembly manuals:

• Base preparation: For UK and German buyers, I specify that the installation surface must be flat within ±5 mm across the diagonal. A concrete or paved patio slab with a minimum compressive strength of 20 MPa is recommended for permanent installations.
• Wind anchoring: In exposed coastal areas of France, Spain, and Portugal, I recommend additional wind straps connecting the roof frame to ground anchors on the prevailing wind side. We include pre-drilled anchor points on all our roof post brackets for this purpose.
• Drainage: All our hardtop gazebo roof panels include an integrated gutter channel along the lower edge, directing rainwater to the corner posts where it exits through a downspout. For buyers in high-rainfall regions like the UK and Ireland, I recommend connecting the downspout to a ground-level drain or rain barrel collection system.
• Snow removal: For Scandinavian and Alpine installations, I provide a snow load monitoring guide and recommend seasonal manual snow removal when accumulation exceeds 15 cm on the roof surface — before the 200 kg/m² design threshold is approached.

What I Recommend for Your Next Gazebo Sourcing Project

If you are a European garden center buyer, hospitality project specifier, or outdoor furniture distributor looking for gazebo structures, here is my practical advice based on 12 years of product management:

1. Map your target market's load zones first. Identify the EN 1991-1-3 snow zone and EN 1991-1-4 wind zone for the countries you sell into. Ask your supplier for a load test report that covers the highest zone in your distribution area.
2. Choose the frame material based on climate, not price. For coastal, humid, or high-rainfall markets, aluminum pays for itself in reduced warranty claims within 2 years.
3. Request a ventilation plan for BBQ grill gazebos. At least 60% open side area is non-negotiable. If the design has mesh panels, verify they are fiberglass (not polyester) with 1.2 mm max opening size for adequate airflow.
4. Verify the powder-coating specification. Two-coat system with minimum 120 µm total thickness. Request a salt spray test certificate per ASTM B117.
5. Demand country-specific installation instructions. A gazebo designed for the German market requires different anchoring guidance than one for the Spanish market.

I would welcome the opportunity to discuss your specific hardtop gazebo or BBQ grill gazebo requirements. You can explore our full product range at qiaheoutdoor.com/gazebo-series/ or visit our homepage for our complete outdoor collection. If you have a custom project in mind, I am available for a technical consultation via our contact form.
