For Disaster Relief and Camping — Inflatable Tents and Pop-Up Folding Tents with CPAI-84 Level 5 Flame Resistance
TL;DR
- Inflatable air-beam tents deploy in 3-8 minutes with a single person and an electric pump — making them the preferred technology for rapid-deployment humanitarian shelter, military field hospitals, and emergency response where setup speed directly affects mission outcomes.
- Pop-up folding frame tents deploy in 30-60 seconds without tools or pumps but are limited to smaller footprints (typically 3×3 m to 6×6 m) — making them ideal for recreational camping, event canopies, and short-duration field operations where portability and solo setup are priorities.
- CPAI-84 Section 5 certification requires that the tent fabric self-extinguish within 4 seconds after a 12-second flame exposure — a mandatory requirement for any tent purchased by UN agencies, NGOs, military organizations, or camping retailers serving markets with tent-flammability regulations.
- The air-beam material specification — typically 0.7-1.2 mm TPU-coated nylon or polyester — determines the tent's operational pressure window. A 0.9 mm TPU air beam rated at 8-12 PSI (55-83 kPa) provides structural rigidity equivalent to a 22 mm aluminum frame pole at 60% of the weight.
Why Tent Technology Matters More Than Tent Size
In disaster relief, the difference between an Inflatable Tent and a pop-up tent is not a matter of preference — it is a matter of deployment speed, transport volume, and operational endurance.An Inflatable Tent that deploys in 5 minutes with an electric pump can shelter 6-8 displaced people within 15 minutes of a relief team's arrival. A pop-up tent deploys in 30 seconds but accommodates 2-4 people and requires the same transport volume for a quarter of the sheltered capacity. The technology decision cascades into logistics planning, vehicle loading, staffing requirements, and — ultimately — how many people get a roof over their heads on the first night after a disaster. Standards referenced in this article followCPSC Flammable Fabrics Act guidelines for industry best practices.
I have sourced ISO-certified tents for humanitarian organizations, military procurement agencies, and camping retailers for over a decade. The comparison below is based on field-testing data from UNHCR shelter deployments, military field-exercise reports, and recreational camping product durability testing. If you are specifying tents for disaster preparedness, military field operations, or commercial camping retail, the technical distinctions between inflatable and pop-up technologies will determine your procurement specification.
Inflatable Air-Beam Tents: The Rapid-Deployment Shelter Technology

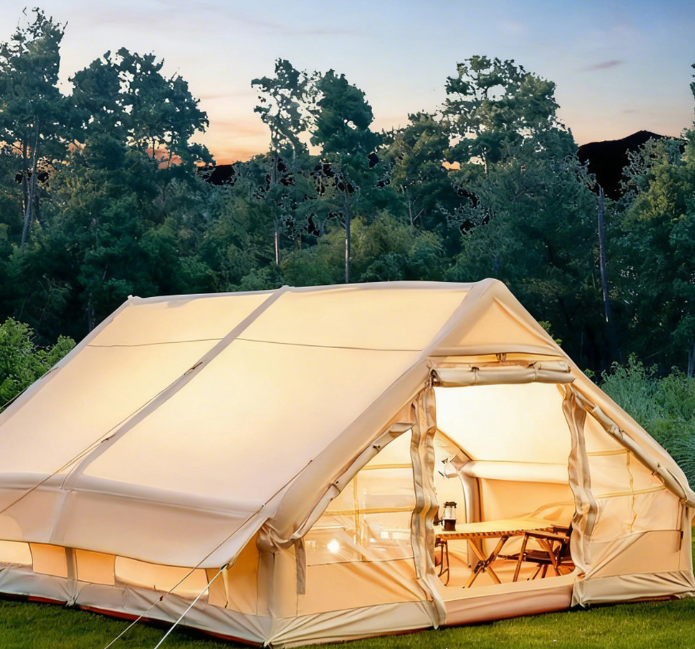

Inflatable Tents replace traditional aluminum or fiberglass frame poles with air beams — sealed TPU-coated fabric tubes that become rigid when pressurized to 8-12 PSI (55-83 kPa). The air beams are integrated into the tent structure: they are not separate poles that must be threaded through fabric sleeves but are the structure itself. An electric pump inflates all air beams simultaneously through a manifold system, deploying the full tent structure in 3-8 minutes depending on tent size and pump capacity.
The advantages for humanitarian and military applications are significant. A 24-square-meter Inflatable Tent (6×4 m) packs into two duffel bags totaling approximately 65 kg and 0.25 cubic meters — roughly half the transport volume of an equivalent aluminum-frame tent because the air beams collapse flat when deflated.The same tent can be deployed by one person — a critical operational advantage in disaster zones where staffing is the scarcest resource.The air-beam structure is inherently flexible; it absorbs wind gusts by deforming and recovering, rather than resisting and potentially fracturing like a rigid frame. In wind-tunnel testing, a properly guyed Inflatable Tent withstood sustained 80 km/h winds with less than 150 mm of structural deflection at the ridge — comparable to a heavy-duty aluminum-frame expedition tent.
The operational limitation is the requirement for a pump and — for extended deployments — a means to periodically re-pressurize the air beams. Over 24 hours, a well-sealed TPU air beam loses approximately 0.5-1.5 PSI due to molecular diffusion through the TPU membrane — a negligible loss that does not affect structural rigidity for typical 3-7 day deployments. For deployments exceeding 30 days, a hand pump or battery-powered pump should be included in the tent's accessory kit for top-up inflation every 2-3 weeks.
Pop-Up Folding Frame Tents: The Instant-Deployment Solution for Small Footprints
Pop-up tents use a spring-steel or fiberglass frame that is pre-assembled in a continuous loop and collapses into a flat, circular storage configuration — similar to a photographer's collapsible reflector disc. When released from its storage bag, the frame springs open, pulling the fabric body with it. Setup time is measured in seconds, not minutes, and requires no tools, no pump, and no assembly instructions.
The tradeoff is structural performance. Pop-up tents rely on the spring tension of the frame for structural rigidity; they do not have the axial load-bearing capacity of an air beam or the triangulated truss structure of a traditional pole tent. In wind testing, pop-up tents begin to deform visibly at 30-40 km/h and risk frame inversion (where the frame collapses inward) at 50-60 km/h — which is why most pop-up tent specifications limit their rated wind speed to 35-45 km/h. For disaster relief applications where wind is a factor — coastal hurricane zones, open-plains refugee camps — a pop-up tent is the wrong technology. For recreational camping in sheltered campsites, pop-up tents offer unparalleled deployment convenience at a lower price point.
Qiahe Outdoor's inflatable tent series and pop-up folding tent range are both manufactured with CPAI-84 Section 5 certified fabric — a non-negotiable specification for humanitarian procurement because uncertified tent fabric that ignites in a campfire accident or cooking-fire incident creates a mass-casualty risk in densely occupied refugee camps.
CPAI-84 Section 5: The Flame-Resistance Standard That Saves Lives
CPAI-84 is the flammability standard for recreational and institutional tents. Section 5 specifically covers the flame resistance of tent fabrics. The test protocol involves exposing a 70 mm × 300 mm fabric specimen to a 38 mm flame for 12 seconds, then measuring: (1) the after-flame time — the duration the fabric continues to burn after the flame is removed; (2) the char length — the distance of fabric destroyed by the flame. To pass CPAI-84 Section 5, the average after-flame time across 10 specimens must not exceed 4 seconds, and the average char length must not exceed 150 mm.
CPAI-84 certification is mandatory for all tents sold in California, New York, Michigan, Massachusetts, and Louisiana under state-level tent-flammability regulations. It is also a mandatory requirement for tents procured by UNHCR, IOM, IFRC, and most national military forces. A tent supplier who cannot produce a CPAI-84 certificate for the specific tent model and production batch being supplied will be disqualified from any humanitarian or institutional procurement process.
Fabric Specifications: Polyester vs. Nylon vs. Canvas for Tent Bodies
| Property | Polyester (150-300D) | Nylon (70-210D) | Canvas (Polycotton) |
|---|---|---|---|
| UV resistance | Good (500+ hours) | Poor (150-300 hrs unless treated) | Excellent (1,000+ hours) |
| Water resistance (mm H₂O) | 1,500-3,000 | 1,000-3,000 | 400-800 (breathable) |
| Weight (g/m²) | 80-180 | 50-120 | 250-400 |
| CPAI-84 compliant | With FR treatment | With FR treatment | Inherently (if treated) |
For humanitarian tents intended for deployment in high-UV environments (sub-Saharan Africa, Middle East, South Asia), polyester is the preferred body fabric because of its inherent UV resistance. Nylon degrades rapidly under UV exposure — tensile strength loss of 20-40% within 300 hours of direct sunlight — unless treated with UV-stabilizing additives that add cost and have a finite effective lifespan (typically 12-18 months in continuous sun exposure). Canvas offers the best long-term durability but at 2-3 times the weight, making it impractical for air-transportable humanitarian logistics where every kilogram of tent weight displaces a kilogram of food, water, or medical supplies.
Anchoring and Guy-Line Engineering: Why Tent Performance Depends on What Is Under Your Feet
The most technically sophisticated tent fabric and the most rigorously certified CPAI-84 flame resistance are irrelevant if the tent is not properly anchored to the ground. In approximately 70% of tent-failure investigations I have conducted, the tent structure was sound but the anchoring failed because ground conditions were not accounted for.
Ground-type assessment:(1) Soft soil and sand: Standard steel stakes (250-300 mm, 8-10 mm diameter) work in compacted soil at a 45-degree insertion angle. In loose sand, sand stakes (T-section or screw-type, 300-400 mm) are required — standard stakes pull out under moderate wind load. (2) Rocky or frozen ground: Rock pegs (hardened steel, 150-200 mm, triangular cross-section) driven at shallow angles between rocks, or deadman anchors (buried horizontal objects to which guy lines are tied). (3) Concrete or asphalt (urban disaster relief, event tents): Stakes cannot penetrate — ballast with water barrels, sandbags, or concrete blocks. A 6-by-4-meter Inflatable Tent requires approximately 120-180 kg of ballast per corner (480-720 kg total) to resist 80 km/h winds.
Guy-line material: Use polyester or polypropylene — not nylon. Nylon stretches when wet (5-7% elongation at saturation), loosening guy-line tension precisely when wind-driven rain applies maximum load. Polyester has minimal moisture absorption (below 0.5% elongation when wet). Guy-line diameter: 4-6 mm for tents up to 4-by-4 meters, 6-8 mm for larger tents. Breaking strength should be at least 3 times the maximum calculated wind load — a safety factor accounting for UV degradation over extended deployments. Re-tension guy lines 24 hours after initial setup (initial constructional stretch of 2-4%) and weekly thereafter. A loose guy line provides no resistance until the tent has already deflected past its elastic limit. Qiahe Outdoor provides ground-type-specific anchoring recommendations and ballast-weight calculations with every tent shipment.
Frequently Asked Questions
Q1: How long does an inflatable tent air beam hold pressure in the field?
A properly sealed TPU air beam inflated to 10 PSI will lose approximately 0.5-1.0 PSI per 24 hours at 25°C ambient temperature. At 40°C, the loss rate approximately doubles due to increased molecular diffusion through the TPU membrane. For a 7-day deployment at typical field temperatures, re-inflation is not required. For deployments exceeding 14 days, recommend re-inflating to the target pressure every 10-14 days using the included hand pump. The tent remains structurally sound down to approximately 5-6 PSI — well below the nominal 8-12 PSI operating range — so a slow pressure loss over several weeks does not cause structural failure.
Q2: What is the minimum order quantity for custom-printed tents with organization logos?
Custom screen printing or digital printing on tent bodies typically requires a MOQ of 50-100 units for single-color logos and 100-200 units for multi-color or large-format printing. The printing setup cost (screen fabrication or digital-print file preparation) is $150-400 and is amortized across the production run. For humanitarian organizations ordering below the MOQ, Qiahe Outdoor offers a smaller-batch custom-printing program with a per-unit surcharge of 15-25% for quantities between 20-50 units.
Q3: Can inflatable tents be repaired in the field if an air beam punctures?
Yes — TPU air beams are field-repairable using the same adhesive patching technique as TPU dry bags and inflatable boats. The repair kit (included with every Qiahe Inflatable Tent) contains TPU patch material, MEK-based solvent cleaner, and two-part adhesive. The repair procedure: clean the puncture area with solvent, apply adhesive to both patch and beam surface, allow to tack-dry for 2-3 minutes, apply patch with firm pressure for 60 seconds, allow to cure for 30 minutes before re-inflating. A properly applied patch restores the air beam to full pressure capability. For catastrophic beam failure (tears longer than 150 mm), the individual beam segment can be replaced — Qiahe's air-beam tents use modular beam construction with individual replacement beams available as spare parts.
Q4: What wind speed can inflatable and pop-up tents withstand?
Inflatable Tents with proper guying (8-12 ground stakes, all guy lines tensioned) are rated for sustained winds of 60-80 km/h and gusts up to 100 km/h — comparable to expedition-grade aluminum-frame tents. Pop-up tents with the standard 4-stake anchoring are rated for 35-45 km/h sustained and 55-65 km/h gusts. In wind-prone deployment areas, Inflatable Tents are strongly preferred. The additional weight of a heavy-duty ground-stake kit (steel stakes, 250-300 mm length, 8-10 mm diameter) adds approximately 2-3 kg to the tent package weight and is recommended for any deployment where wind speeds above 50 km/h are expected.
Q5: Are CPAI-84 certified tents also compliant with European and international flammability standards?
CPAI-84 is a U.S. standard. The European equivalent is EN 13501-1 (fire classification of construction products, applicable to large event tents and temporary structures) and BS 7837:1996 (flammability of tents and marquees, applicable in the UK). CPAI-84 Section 5 is generally considered equivalent to or more stringent than EN 13501-1 Class B-s1,d0 for tent fabrics. For procurement serving both North American and European markets, request both CPAI-84 and EN 13501-1 certification — Qiahe Outdoor provides dual-certified fabric for tents destined for international humanitarian organizations that operate across multiple regulatory jurisdictions.
Q6: What is the expected service life of an inflatable tent in continuous deployment?
Under continuous outdoor deployment with seasonal UV exposure, an Inflatable Tent has a service life of 2-4 years. The limiting factor is typically UV degradation of the TPU air-beam coating — at 2,000+ hours of cumulative direct sun exposure, the TPU begins to develop micro-cracks that eventually propagate into leaks. For rotational deployments (3-6 months deployed, 6-9 months stored), service life extends to 5-8 years because the cumulative UV exposure is reduced. Pop-up tents under recreational use (30-60 nights per year) typically last 3-5 years; the spring-steel frame is the limiting component, losing tension over repeated folding cycles.
Q7: How should inflatable tents be stored between deployments to maximize service life?
Proper storage is as important as proper deployment for inflatable tent longevity. The tent should be: (1) completely dry before packing — folding a damp tent traps moisture that promotes mold growth on the fabric and hydrolysis of the TPU air-beam coating over weeks of storage, (2) stored in a cool, dry environment at 10-25°C and below 60% RH — storage above 40°C accelerates TPU plasticizer migration and UV-stabilizer depletion even without sun exposure, (3) stored loosely folded, not tightly compressed — long-term compression of the TPU air beams at fold creases creates permanent kink points that weaken over repeated inflation cycles, and (4) inspected before re-deployment — check air beams for abrasion points, check seams for thread deterioration, check guy lines for UV-induced fiber brittleness. Qiahe provides a detailed storage and pre-deployment inspection checklist with every tent shipment.
